      NSSHOEU/NTSWOEU Submersible Cable Up To 6kv

Applications

These cables are used for the connection of electrical operating equipment inindustrial water, notably for submersible pumps.3-core cables without earth cores are used where theascending pipe serves as earth conductor.

Standards

VDE 0250 Part 812
VDE 0250 Part 813

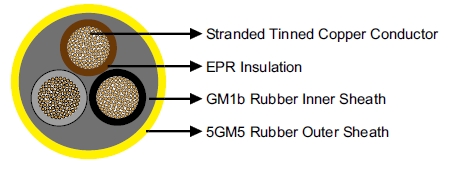

Construction

NSSHOEU/NTSWOEU Submersible Cable Up To 6kv

Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation:
Heat resistant EPR.
InnerSheath: Rubbertype GM1b.
Outer Sheath: Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant (for 0.6/1kV). Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV, 3.6/6kV).

Dimensions and Weight

NSSHOEU 0.6/1kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No. ×mm² mm kg/km
3×4 17.0 400
3×10 22.0 720
3×16 26.0 1050
3×25 31.0 1500
3×35 35.0 2050
3×50 41.0 2820
3×70 45.0 3540
3×95 52.0 4750
4×25 35.0 2010
4×35 38.0 2530
4×50 45.0 3500
3×70/35 49.0 4190

NTSWOEU 1.8/3kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No. ×mm² mm kg/km
3×25 35.0 1840
3×35 39.0 2410
3×50 43.0 3040
3×70 48.0 3920
3×95 53.0 4950

NTSWOEU 3.6/6kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No. ×mm² mm kg/km
3×25 45.0 2690
3×35 47.0 3180
3×50 51.0 3860
3×70 56.0 4870
3×95 60.0 5870
