      NSSHOEU-O/J 0.6/1kV Heavy Duty Flexible Cable

Applications

These cables are designed for the connection of mobile equipment and machines under very high mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in mining and industry, quarries and building sites.

Standards

VDE 0250 Part 812

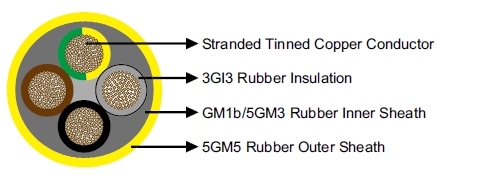

Construction

NSSHOEU-O/J 0.6/1kV Heavy Duty Flexible Cable

Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation:
Heat resistant EPR type 3GI3.
InnerSheath (): SR/SBR/PCP/CRtype GM1b/5GM3.
Outer Sheath: Chlorinated rubber PCP/CR type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

Dimensions and Weight

NSSHOEU-O

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
1×16 11.0 13.0.5.0 260
1×25 13.0 16.0 390
1×35 14.0 17.0 500
1×50 16.0 19.0 680
1×70 18.0 21.0 900
1×95 20.0 24.0 1150
1×120 23.0 27.0 1440
1×150 24.0 28.0 1750
1×185 28.0 31.0 2300
1×240 32.0 36.0 3000
2×1.5 11.0 14.0 210
3×2.5 13.0 16.0 300

NSSHOEU-J

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3×1.5 12.0 15.0 240
3×70/35 46.0 51.0 4450
3×95/50 54.0 59.0 5870
3×120/70 59.0 64.0 7340
4×1.5 13.0 16.0 280
4×2.5 15.0 18.0 400
4×4 17.0 20.0 510
4×6 18.0 21.0 630
4×10 22.0 26.0 950
4×16 28.0 32.0 1430
4×25 33.0 37.0 2100
4×35 36.0 40.0 2650
4×50 42.0 47.0 3660
5×1.5 13.0 16.0 320
5×2.5 16.0 19.0 470
5×4 18.0 21.0 600
5×6 20.0 24.0 780
5×10 24.0 28.0 1130
5×16 29.0 34.0 1720
5×25 35.0 39.0 2470
6×2.5 13.0 16.0 300
7×1.5 16.0 19.0 470
7×2.5 18.0 21.0 600
10×1.5 19.0 22.0 570
10×2.5 21.0 25.0 790
12×2.5 22.0 26.0 860
18×2.5 28.0 32.0 1240
