   NTMCGCWOEU Flexible Medium-Voltage Single Core Cable

Applications

These cables are used for connection in switch-gear and for connection of mobile transformer substations to the overhead line.

Standards

VDE 0250 Part 813

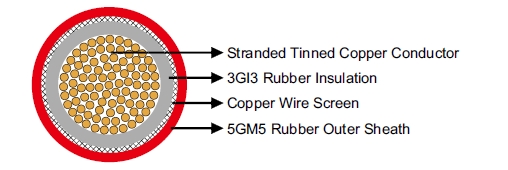

Construction

NTMCGCWOEU Flexible Medium-Voltage Single Core Cable

Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.

Inner Conductor Layer: Semiconductive rubber.

Insulation: EPR type 3GI3.

Outer Conductor Layer:Semiconductive rubber.

Screen: Copper wire braid.

Dimensions and Weight

3.6/6kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
1×16/16KON 19.4 21.4 601
1×25/16KON 21.4 23.4 825
1×35/16KON 22.6 24.6 882
1×50/16KON 24.6 27.6 1104
1×70/16KON 26.5 29.5 1346
1×95/16KON 28.5 31.5 1614
1×120/16KON 31.2 34.2 1983
1×150/25KON 32.9 35.9 2300
1×185/25KON 34.3 37.3 2642
1×240/25KON 38.6 41.6 3371

6/10 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
1×16/16KON 20.4 22.4 644
1×25/16KON 22.2 24.2 791
1×35/16KON 23.4 25.4 1050
1×50/16KON 25.4 28.4 1153
1×70/16KON 27.3 30.3 1399
1×95/16KON 29.3 32.3 1910
1×120/16KON 32.0 35.0 2044
1×150/25KON 33.7 36.7 2364
1×185/25KON 35.1 38.1 2709
1×240/25KON 39.4 42.4 3446

8.7/15 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
1×16/16KON 22.6 24.6 760
1×25/16KON 24.8 27.8 954
1×35/16KON 26.4 29.4 1101
1×50/16KON 28.0 31.0 1304
1×70/16KON 30.5 33.5 1623
1×95/16KON 32.5 35.5 1912
1×120/16KON 34.2 37.2 2219
1×150/25KON 36.9 39.9 2637
1×185/25KON 38.3 41.3 2995
1×240/25KON 41.6 44.6 3658

12/20 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
1×16/16KON 26.0 29.0 971
1×25/16KON 27.2 30.2 1090
1×35/16KON 28.4 31.4 1236
1×50/16KON 31.0 34.0 1680
1×70/16KON 32.5 35.5 1776
1×95/16KON 34.5 37.5 2170
1×120/16KON 37.2 40.2 2481
1×150/25KON 38.9 41.9 3020
1×185/25KON 40.3 43.3 3182
1×240/25KON 43.6 46.6 3870
