YCY UL/CSA 600V 90°C

YCY UL/CSA 600V 90°C

Application

These flexible control cable rated at 600V are used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment, suitable for installation in dry, moist or wet environment and moderate flexing applications.

Standards

UL Style 10012 Style 2587
CSA

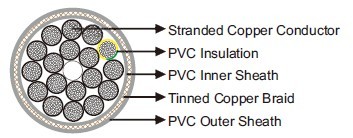

Construction

Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC60228.
Insulation: PVC Type TI3 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. PVC TI1 can be offered upon request.
Inner Sheath: PVC Type YM5 according to DIN VDE 0207 part 5. PVC TM5 can be offered upon request.
Screen: Tinned copper braid.
Outer Sheath: PVC Type YM5 according to DIN VDE 0207 part 5, class 43 UL-Std. 1581. PVC TM5 can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um)

600V

Operating Temperatures

flexing: -5℃~+90℃; fixed: -40℃~+90℃

Minimum Bending Radius

flexing: 10×OD; fixed: 5×OD

Flame Retardant

VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1

Oil Resistant

Yes

Silicone Free

Yes

Dimensions and Weight

Construction

Nominal Overall Diameter

Nominal Weight

No. of cores×mm²

mm

kg/km

2×0.5

7.8

93

3G0.5

8.1

124

4G0.5

8.7

133

5G0.5

9.3

153

7G0.5

10.6

191

9G0.5

12.4

243

12G0.5

13.1

322

18G0.5

15.7

374

25G0.5

18.3

436

34G0.5

20.2

560

41G0.5

22.4

663

2×1

8.2

107

3G1

8.5

130

4G1

9.2

155

5G1

10.1

181

7G1

11.4

209

9G1

13.4

321

12G1

13.9

341

18G1

16.3

473

25G1

19.6

650

34G1

22.6

781

41G1

24.4

892

2×1.5

8.8

136

3G1.5

9.3

165

4G1.5

10.1

192

5G1.5

10.9

224

7G1.5

13.0

273

9G1.5

14.9

340

12G1.5

15.7

461

18G1.5

18.4

674

25G1.5

22.4

950

34G1.5

25.3

1203

41G1.5

27.5

1588

2×2.5

10.4

173

3G2.5

10.9

220

4G2.5

11.9

270

5G2.5

13.3

329

7G2.5

15.7

428

9G2.5

18.2

580

12G2.5

19.3

761

18G2.5

23.2

1140

25G2.5

28.5

1551

2×4

12.6

209

3G4

13.2

310

4G4

14.6

456

5G4

15.9

532

7×4

19.1

737

2G6

14.3

318

3G6

15.3

411

4G6

16.7

572

5G6

18.5

732

7G6

22.2

961

3G10

19.2

741

4G10

21.3

988

5G10

23.9

1202

7G10

26.7

1743

3G70

41.4

3647

3G16

24.4

1088

4G16

27.4

1662

5G16

30.8

2021

7G16

33.8

2720

3G25

30.4

1947

4G25

33.5

2591

5G25

40.0

3197

7G25

40.8

4530

3G35

34.0

2701

4G35

37.9

3277

5G35

41.7

4530

3G50

35.0

2870

4G50

40.5

3960

5G50

44.4

4371

3G70

41.4

3647

4G70

46.1

4882

5G70

50.6

5876

3G95

46.2

4751

4G95

50.7

6368

5G95

56.1

7843

3G120

52.0

5899

4G120

57.0

8010

5G120

62.7

9205

G: with green-yellow earth core
×: without green-yellow earth core
