Application
These screened cables are designed for use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics.
Standards
DIN VDE 0245

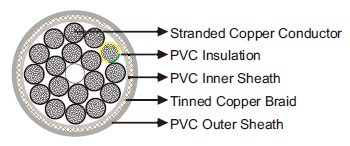

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation: PVC Type YI 2.
Inner Sheath: PVC.
Screen: Tinned copper braid.
Outer Sheath: PVC Type YM 2.
Technical Data
Rated Voltage Uo/U (Um) |
300/500V |
Operating Temperatures |
flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
Minimum Bending Radius |
flexing: 20×OD; fixed: 10×OD |
Flame Retardant |
IEC 60332-1 |
Ozone Resistant |
Yes |
Silicone Free |
Yes |
Lead Free |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of coresGmm² |
mm |
kg/km |
2×0.5 |
5.6 |
65 |
3G0.5 |
6.6 |
72 |
4G0.5 |
7.6 |
77 |
5G0.5 |
8.3 |
90 |
7G0.5 |
9.3 |
114 |
12G0.5 |
11.0 |
160 |
18G0.5 |
12.0 |
216 |
2×0.75 |
7.1 |
71 |
3G0.75 |
7.4 |
82 |
4G0.75 |
7.9 |
94 |
5G0.75 |
8.4 |
109 |
7G0.75 |
9.0 |
122 |
12G0.75 |
11.2 |
192 |
18G0.75 |
12.7 |
261 |
25G0.75 |
16.0 |
388 |
2×1 |
7.3 |
78 |
3G1 |
7.6 |
90 |
4G1 |
8.1 |
106 |
5G1 |
8.7 |
121 |
7G1 |
9.3 |
144 |
12G1 |
11.7 |
225 |
18G1 |
13.5 |
315 |
25G1 |
16.6 |
455 |
34G1 |
19.5 |
657 |
41G1 |
20.4 |
698 |
50G1 |
22.9 |
918 |
2×1.5 |
7.9 |
94 |
3G1.5 |
8.3 |
112 |
4G1.5 |
9.1 |
133 |
5G1.5 |
9.7 |
148 |
7G1.5 |
10.2 |
183 |
12G1.5 |
13.3 |
295 |
18G1.5 |
16.4 |
451 |
25G1.5 |
18.6 |
599 |
3G2.5 |
9.5 |
158 |
4G2.5 |
10.3 |
191 |
5G2.5 |
11.5 |
213 |
7G2.5 |
12.3 |
274 |
12G2.5 |
13.3 |
530 |
3G4 |
10.7 |
218 |
4G4 |
12.2 |
274 |
5G4 |
12.7 |
317 |
4G6 |
14.0 |
378 |
5G6 |
16.4 |
493 |
4G10 |
17.9 |
636 |
5G10 |
19.4 |
760 |
4G16 |
21.5 |
953 |
5G16 |
23.2 |
1130 |
4G25 |
25.2 |
1401 |
5G25 |
28.2 |
1935 |
4G35 |
29.9 |
1886 |
5G35 |
32.0 |
2268 |
4G50 |
34.4 |
2674 |
5G50 |
43.0 |
4150 |
4G70 |
46.8 |
4600 |
5G70 |
51.8 |
5750 |
4G95 |
51.0 |
6060 |
5G95 |
56.0 |
7580 |
4G120 |
56.0 |
7315 |
5G120 |
63.0 |
9150 |
4G150 |
63.5 |
9680 |
5G150 |
69.5 |
10170 |
G: with green-yellow earth core
×: without green-yellow earth core
